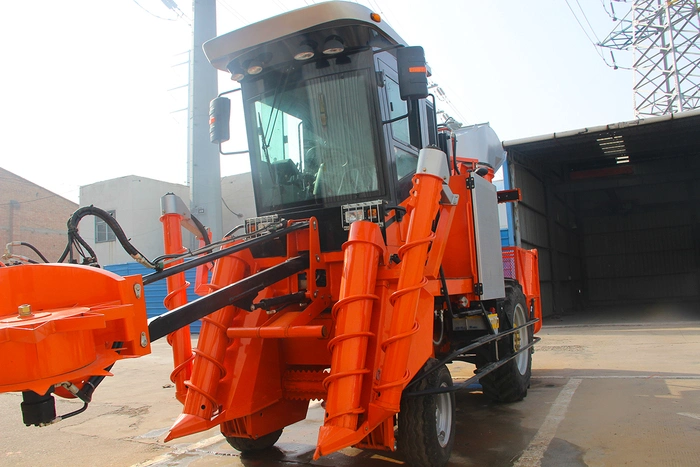

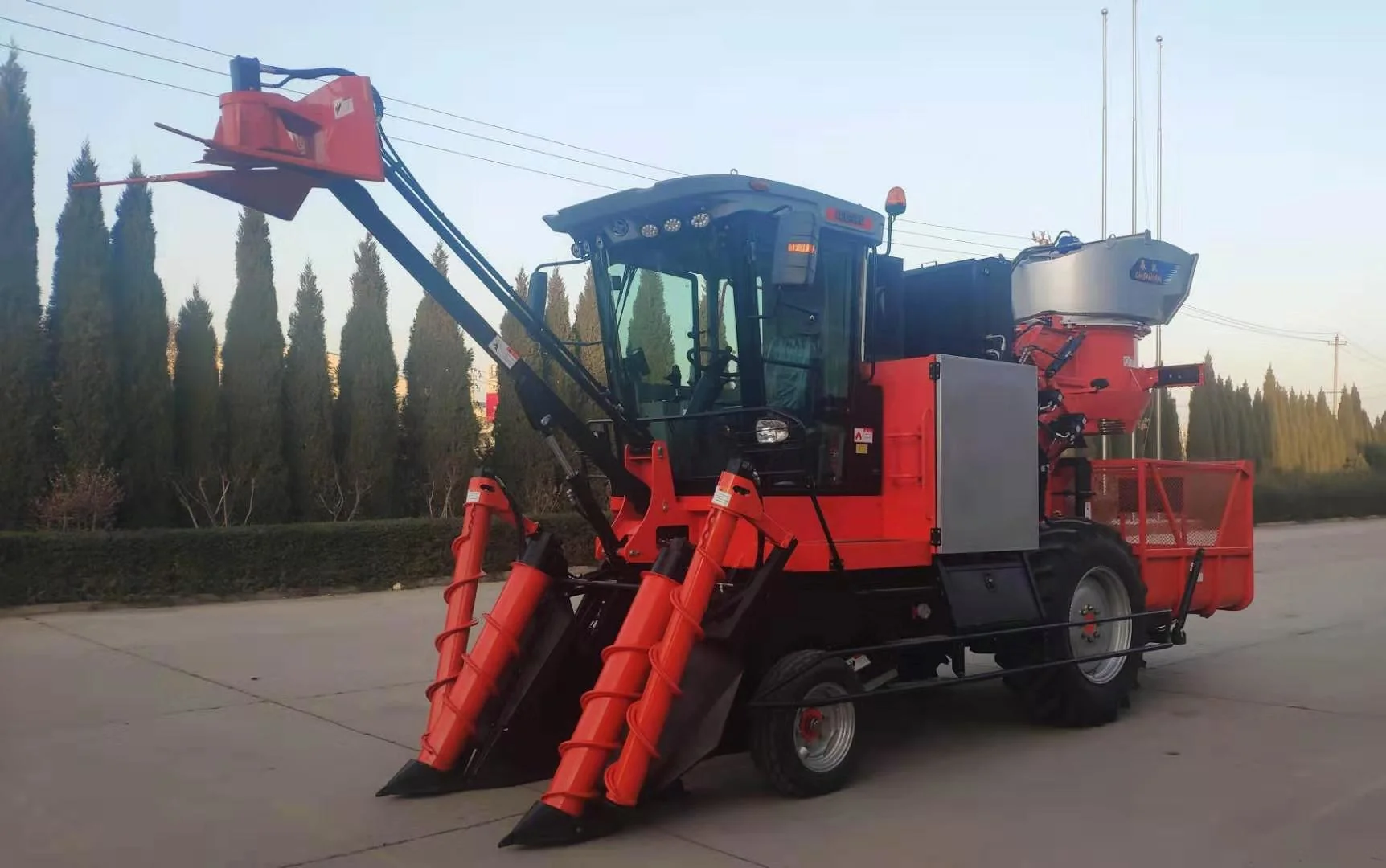

Sugarcane harvester, sugarcane harvesting cutting machine, sugarcane harvesting machine

ModelSH310Power180Hp @2200Fuel Consumption Than2.2-3.0L/THomework Spaced≥1100mmMinimum Bending Radius5500mmMax. Gradability25%Pure Work Efficiency≥20t/hImpurity Rate≤8%Total Loss≤7%Harvest Speed≤9km/hEngine BrandBosch, GermanyTravel Driving TypeHydraulic driveDrive Qty2Min. Ground Clearance320mmAdjustable Range Of

Featured Products

Sugarcane Harvesting Machine, Sugarcane Harvesting Cutting Machine, Harvesting Sugar Cane Machine
Sugarcane Harvesting Machine, Sugarcane Harvesting Cutting Machine, Harvesting Sugar Cane MachineSugarcane Harvesting Machine, Sugarcane Harvesting Cutting Machine, Harvesting Sugar Cane Machine
ModelSH310
Power180Hp @2200
Fuel Consumption Than2.2-3.0L/T
Homework Spaced≥1100mm
Minimum Bending Radius5500mm
Max. Gradability25%
Pure Work Efficiency≥20t/h
Impurity Rate≤8%
Total Loss≤7%
Harvest Speed≤9km/h
Engine BrandBosch, Germany
Travel Driving TypeHydraulic drive
Drive Qty2
Min. Ground Clearance320mm
Adjustable Range Of Cutting Device400mm
Structural Modeldouble disc cutting
Max. Diameter Of Rotation555 mm
Rotated Speed840 r/min
Blade Qty4
Average Ground Pressure6.2Kpa
Machine Weightabout 8100 kgs
Collection WeightAbout 1300 kgs
Discharge Way Of SugarcaneJicun type high discharge
Overall DimensionAbout 8550x2450x3800mm (L x W x H)
Not all technical parameters listed, contact us for more information
We reserves the right to revise the above parameters at the final engineering stage with the prior notice to customer

Technical Features:
1. 180 HP Bosch engine High pressure common rail system, powerful & fuel-efficient
2. Adopt high discharge proprietary technology, with special transportation vehicles, more convenient unloading, more harvest efficient
3. Adopt whole girder patented technology, lower machine center gravity, walk steadily, driving comfortable, faster turnarounds, which could adapt to a certain slope plots of medium of sugarcane harvest
4. Transmission channel using independent floating drum of tubular, differential transmission patent technology, conveying a more open sugarcane cleaner
5. Whole machine adopts electric-hydraulic control system and the mode of a multiple job choice, one key operation, the harvest operation more convenient & comfortable
6. Carry big dipper, GPS tracking & positioning system, CAN bus technology,
7. Mobile network system, effective monitoring real-time sensor data, which can realize remote monitoring diagnosis
8. Hydraulic system heat dissipation independently with control rotate speed of fan and energy saving and lower noise
9. All electric parts are using Europe or America brands. The connectors enjoys reliable quality with waterproof, dust proof and anti-loose
10. The sensor control technology which is capable of monitoring machine working state.
11. The machine walking adopting one-button operation, the diversion controlled by imported steering wheel with comfortable operation.

Sugarcane Harvesting Machine, Sugarcane Harvesting Cutting Machine, Harvesting Sugar Cane Machine
Sugarcane Harvesting Machine, Sugarcane Harvesting Cutting Machine, Harvesting Sugar Cane Machine
Sugarcane Harvesting Machine, Sugarcane Harvesting Cutting Machine, Harvesting Sugar Cane Machine
